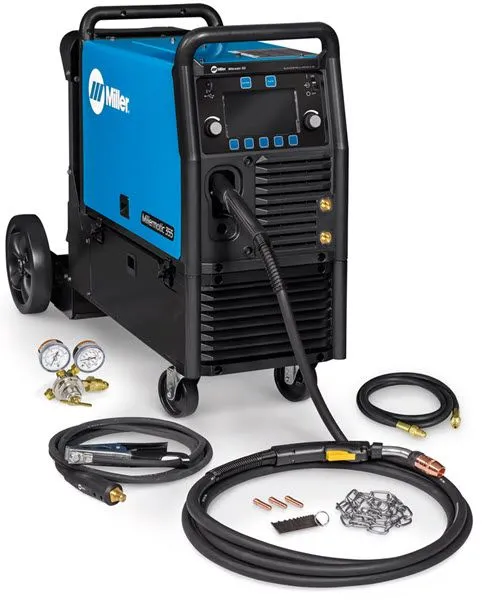

Millermatic® 355 MIG Welder with EZ-Latch™ Single Cylinder Running Gear 951926
The Millermatic® 355 with EZ-Latch™ Single Cylinder Running Gear is a 350 amp portable MIG Welder that operates on single or three-phase input power. It can even be plugged into a portable generator (full output with 19kW generator). The 355 welds material from 22 gauge to 1/2 in thick in a single pass. It comes standard with pulsed-MIG capabilities and a 7-inch color LCD display screen. Its inverter design means that the Millermatic 355 is less than half the weight of its popular predecessor, the Millermatic 350P.
The Millermatic 355 is perfect for fabrication, manufacturing, maintenance and repair. Auto-Set™ Elite technology allows you to use preset welding parameters based on metal thickness, shielding gas and welding wire type to achieve optimum welds. You can also set your voltage and wire feed speed manually and save your favorite settings for a custom welding experience. Pulsed-MIG welding capability provides even better weld quality and improved productivity on all metals, including thin-gauge aluminum and stainless steel.
EZ-Latch™ running gear with single cylinder cylinder rack gives unmatched portability to the Millermatic 355. For moving around the shop, the 355 attaches to the running gear through a series of four, quick-disconnect latches. For times when your 355 is taken into the field, the machine and running gear can be quickly separated for loading into a vehicle. The 355 can also be separated from the EZ-Latch running gear to access difficult-to-reach areas around the shop where a welder with full running gear/cylinder rack might not otherwise fit.
NOTE: EZ-Latch™ running gear comes in separate box and requires some assembly. Components assemble in three steps and include: cart with front caster wheels, cylinder tray with rear wheels and cylinder post.
Processes
Applications
Industrial Applications
Fabrication
Maintenance and Repair
Manufacturing
Features
Provides unmatched portability for the Millermatic® 355. Operators no longer need to lift machine AND running gear when loading or moving. Latches secure machine to running gear. Simply loosen the latch retaining knob and rotate latches to disengage machine from running gear for easy portability. Cylinder rack features bottle forward technology for increased stability when moving along an incline and running gear has built-in storage for accessories.
Ensures proper machine setup and parameter selection, reducing setup time and increasing weld time. Quick-access backlit Auto-Set and Pulse buttons above the LCD display illuminate when active. Soft-key buttons below the display change function depending on which screen is displayed. Makes setup or change quick, easy and intuitive. Large text for easier readability. Intuitive connection setup images. Full troubleshooting descriptions versus help errors and look up codes.
Provides versatility to utilize any North American power (208, 230, 460, 575 Volts).
Allows easy save and recall of favorite weld settings.
Delivers greater productivity by eliminating the need to manually set or change parameters.
Delivers consistent quality by welders of all skill levels by using prequalified weld settings.
Minimizes supervisor need to intervene.
Increases productivity by eliminating the need to go back to machine to change weld settings. Simply tap gun trigger to select the program.
Delivers higher quality welds for ALL welders.
Lower heat input for less distortion on thin materials and better puddle control on out-of-position welds.
Less spatter minimizes post weld grinding and rework allowing more welding time.
Perform welding applications that couldn't be done in the past.
Ideal for MIG welding aluminum and stainless steel.
Direct connection for OPTIONAL XR™ push-pull guns or Spoolmatic® spool guns.
Auto-Gun Detect™ automatically adjusts voltage, wire speed and timers for faster switching between MIG, push-pull and spool guns.

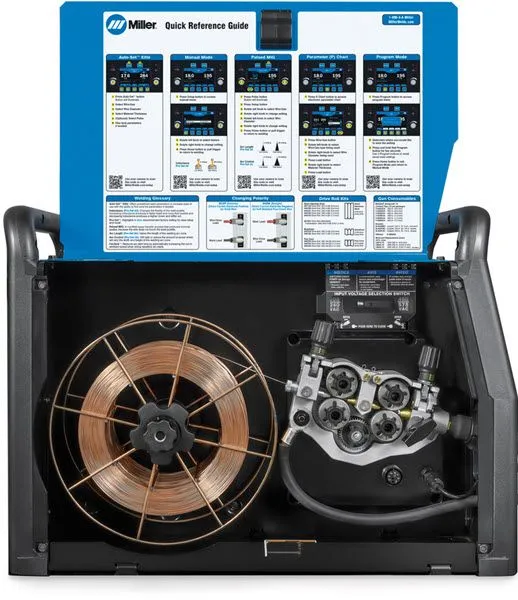

Features two easy-to-set, scaled, tension adjustments and quick-change reversible drive rolls for .035 and .045 in (0.9 and 1.2 mm) wire.
Switch located in the wire drive compartment provides the ability to manually switch input voltage. An error message will be displayed if the wrong input voltage is utilized.
The Millermatic 355 will be able to operate and provide full output when powered by generators with 19,000-watt (19 kW) output or higher. Limited output will occur when used with smaller generators
Specs
Comes complete with:
Get a FREE Optrel® Panormaxx CLT Silver auto-darkening welding helmet with purchase of a Miller® Millermatic® 355 MIG welder. While supplies last. (No substitutions allowed.)
The Optrel® Panoramaxx CLT Silver auto-darkening welding hood features Crystal shade 2.0 light state that is unmatched in the world for color and clarity and provides up to 6X the viewing area of a standard 2" X 4" auto-dark welding lens. The key to this revolutionary technology is the size and shape of the ADF, coupled with the unique Panoramaxx shell design, which allows the welding lens to be positioned closer to your face. The Panoramaxx also has advanced features like SHADETRONIC®, which automatically adjusts the shade level based on the brightness of the arc and True Color, which allows for realistic color perception in light or dark states.
All Panoramaxx welding helmets now come with the revolutionary IsoFit® headgear. It is the only welding headgear in the world that wraps the entire crown of the head with multiple touch points to provide a custom fit like never before. Independent "three dimensional" size, width and height adjustments ensure all day comfort with a secure hold.
The Panoramaxx CLT has a built-in rechargeable battery that does not need replacing. The battery is charged through arc light or when manual charging is necessary, a micro USB charging port. It comes complete with micro USB cable, helmet bag and Oprel's 2 1 warranty.
